ACSL SOTEN Basic Bundle

ACSL SOTEN Basic Bundle - Built for Mission-Ready Versatility

Secure, Flexible, and Ready to Fly

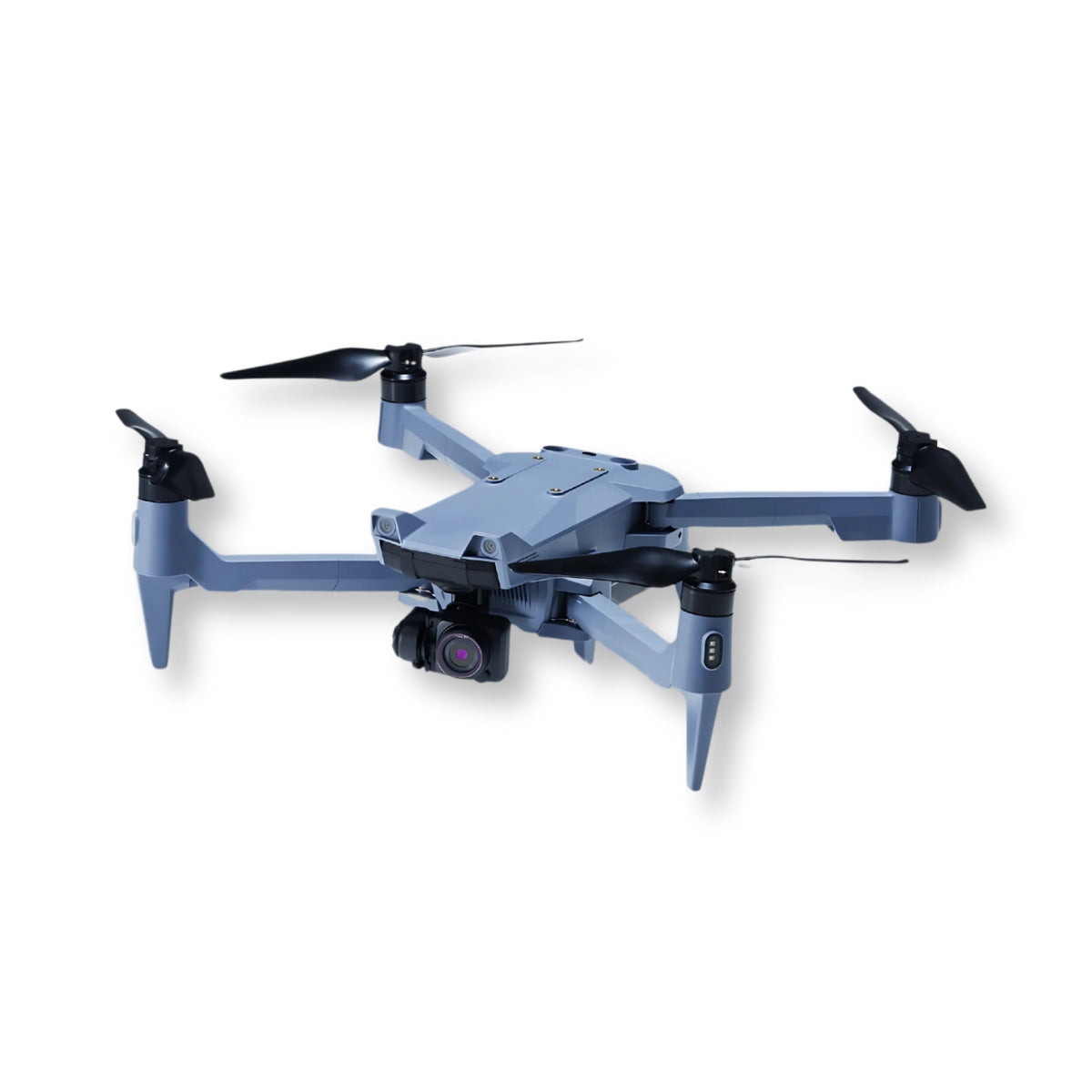

The ACSL SOTEN Basic Bundle is a ready-to-deploy drone system built for versatility, mobility, and compliance. Lightweight, foldable, and NDAA-compliant, this drone comes equipped with the ACSL SOTEN Standard Camera-a high-resolution imaging tool designed for general-purpose aerial photography, inspection, and field documentation.

Reliable Imaging, Rugged Design

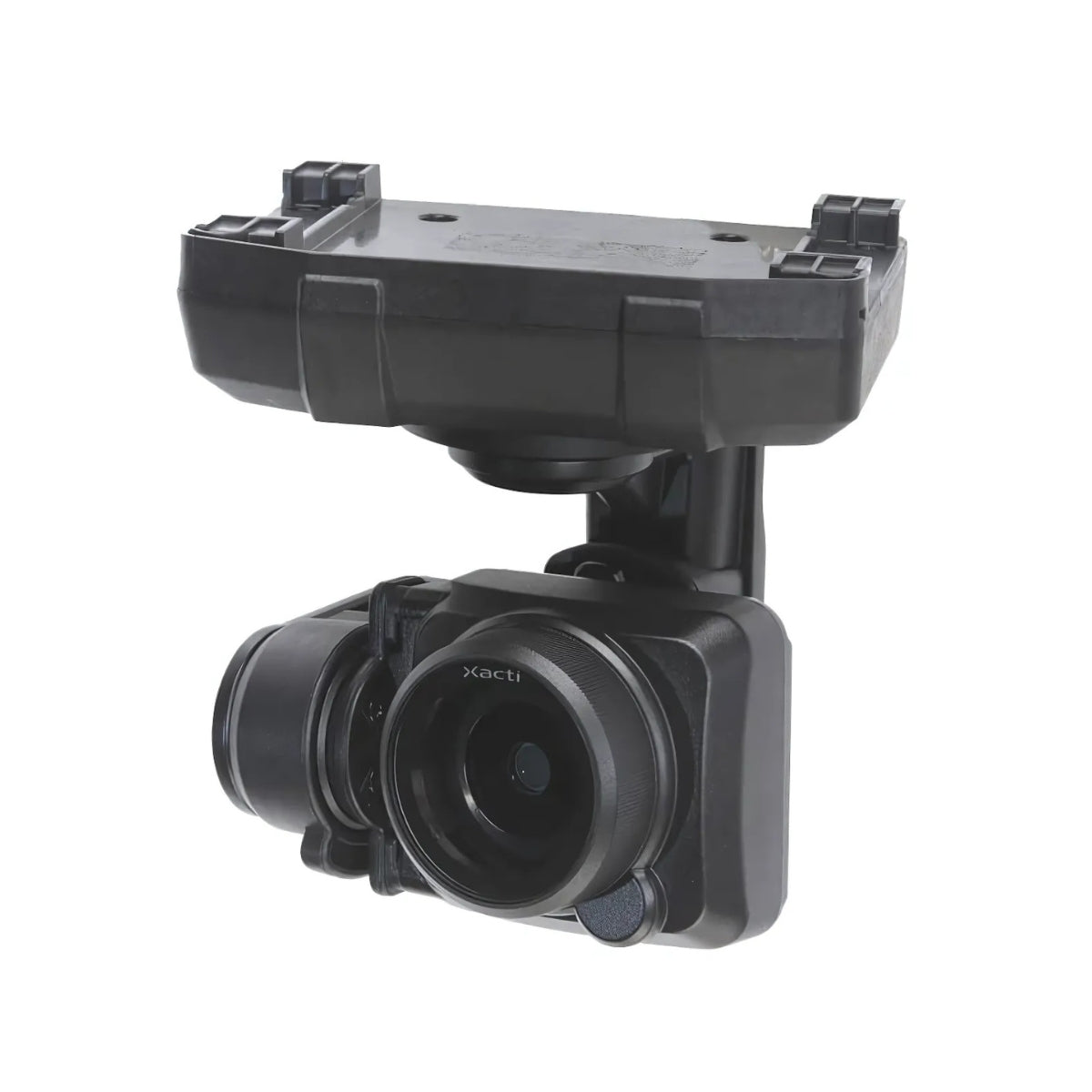

The included ACSL SOTEN Standard Camera captures 20MP stills with a 1" RGB sensor and mechanical shutter, producing sharp, distortion-free imagery ideal for infrastructure checks, mapping, or public safety work. With encrypted image storage, your data remains secure, even on the memory card. The drone's hot-swappable camera bay allows you to upgrade or swap payloads without powering down, supporting future use with multispectral, thermal, or zoom cameras.

Key Features

Designed for broad professional use, the ACSL SOTEN Basic Bundle delivers performance and peace of mind.

• Includes ACSL SOTEN Standard Camera with 20MP 1" RGB sensor and mechanical shutter
• Hot-swappable payload system enables fast camera changes in the field
• NDAA-compliant drone and secure encrypted photo/video data handling
• IP43-rated weather resistance protects against rain, dust, and debris
• LTE connectivity supports BVLOS operations in remote or complex areas
• FAA Remote ID ready for immediate compliance
• Foldable airframe weighing just 1.7 kg for quick, easy deployment
• Up to 25-minute flight time and 33 MPH max flight speed
• Multi-directional obstacle avoidance for safe operation near structures or terrain

Applications

Ideal for professional teams and departments that require fast, secure aerial imaging.

• Infrastructure and utility inspection
• Public safety and situational awareness
• General mapping and field documentation
• Industrial asset monitoring
• Emergency response and event support
• Security, perimeter, and facility overviews

Why Buy from DSLRPros

DSLRPros brings more than a decade of hands-on experience helping professionals deploy drones in the field. We don't just ship boxes-we guide you through setup, flight readiness, and compliance. Whether you're a department rolling out your first drone or an enterprise team scaling field operations, our expert staff ensures the ACSL SOTEN Basic Bundle is ready to perform from day one.

Trusted by inspectors, first responders, and industry pros, DSLRPros backs every drone with U.S.-based support, real-world insight, and a mission-focused mindset.

Start flying with the ACSL SOTEN Basic Bundle from DSLRPros-your reliable eye in the sky, anywhere it's needed.

Specifications

• Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
• Height: Unfolded 153mm (including propellers)
• Weight: 1,720g (including standard camera and battery)
• Number of rotor blades: 4
• Intelligent battery: Lithium-ion battery 94Wh, 1 pc
• Operating frequency: 2.412 - 2.477 GHz
• Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
• Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
• Maximum pitch angle: 30°
• Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
• Maximum ascent speed: 3m/s
• Maximum descent speed: 2m/s
• Maximum takeoff weight: 2,000g
• Maximum speed (no wind): 15m/s
• Operational limit altitude: 2000m
• Maximum airspeed: 15m/s
• Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
• Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
• Ingress protection: IP43 (with camera, gimbal, and battery)
• GNSS: GPS + QZSS + GLONASS + SLAS
• Operating temperature: 0°C to 40°C
• Optional items: LTE Comms Module, Spare Battery
• Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
• Obstacle detection angle: 70° horizontal, 40° vertical
• Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
• Operating environment: Adequate lighting and clear texture
• Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
• Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
• Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
• Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles

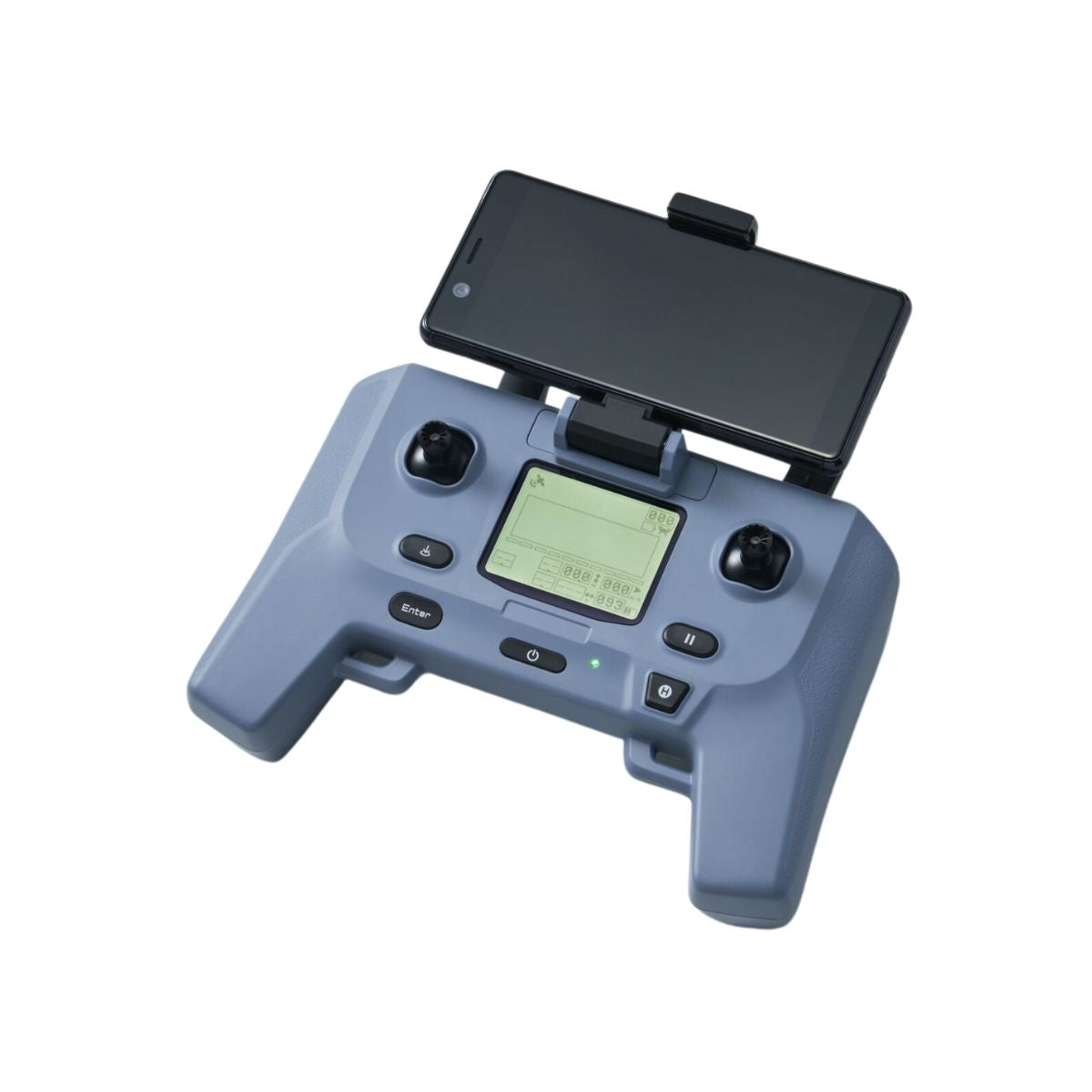

• Remote Controller - Operating frequency: 2.412 to 2.477 GHz
• Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
• Remote Controller - Battery life: Up to 4 hours
• Remote Controller - Operating temperature: 0°C to 40°C
• Remote Controller - Security: AES encryption method
• Remote Controller - Multiple operations: Control can be transferred between two radio controllers
• Supported Mobile Devices - OS: Android™ 4.1 or higher
• Supported Mobile Devices - Terminal: USB Type-C
• Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
• Visible Camera - Effective pixels: 20 megapixels
• Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
• Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
• Visible Camera - Video method: MOV / H.264
• Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
• Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Visible Camera - Sensor size: 1 inch
• Visible Camera - Shutter system: Mechanical
• Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
• Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
• Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Visible Camera - Security: Data encryption can be enabled/disabled
• Camera Gimbal - Mechanism: 3-axis
• Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
• Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
• Camera Gimbal - Control accuracy: ±0.02°
• Camera Gimbal - Switching method: One-touch camera switching
• Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
• Infrared + Visible Camera - Temperature resolution: <60mK
• Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
• Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
• Infrared + Visible Camera - Video method: MOV / H.264
• Infrared + Visible Camera - Video quality: Full HD / HD
• Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

In The Box

• 1x SOTEN Airframe
• 1x Standard Remote Controller (smartphone not included)
• 1x Single Battery Charger
• 1x Smart Battery
• 1x CW Propeller set
• 1x CCW Propeller Set
• 1x Standard 20MP Camera
• 1x Hard Storage Case
