ACSL SOTEN Mission Package

ACSL SOTEN Mission Package - Field-Ready, Mission-Tested

Built for Critical Missions

The ACSL SOTEN Mission Package is a complete NDAA-compliant drone system designed for high-demand tasks such as disaster response, infrastructure inspection, and surveying. Featuring the ACSL SOTEN Standard Camera, rugged Standard Remote Controller, and five smart flight batteries, this package is mission-ready straight out of the box.

Focused on Security and Performance

The included ACSL SOTEN Standard Controller is built for secure, precise operation in the field. With AES 256 encryption and an IP43-rated body, it offers dependable control under pressure. The Standard Camera delivers 20MP stills via a 1" RGB sensor and mechanical shutter-ideal for capturing accurate visual data. With five smart batteries offering up to 28 minutes of flight time each, you'll keep your missions moving without unnecessary downtime.

Key Features

This package combines durability, clarity, and flight endurance for teams operating in real-world, mission-critical scenarios.

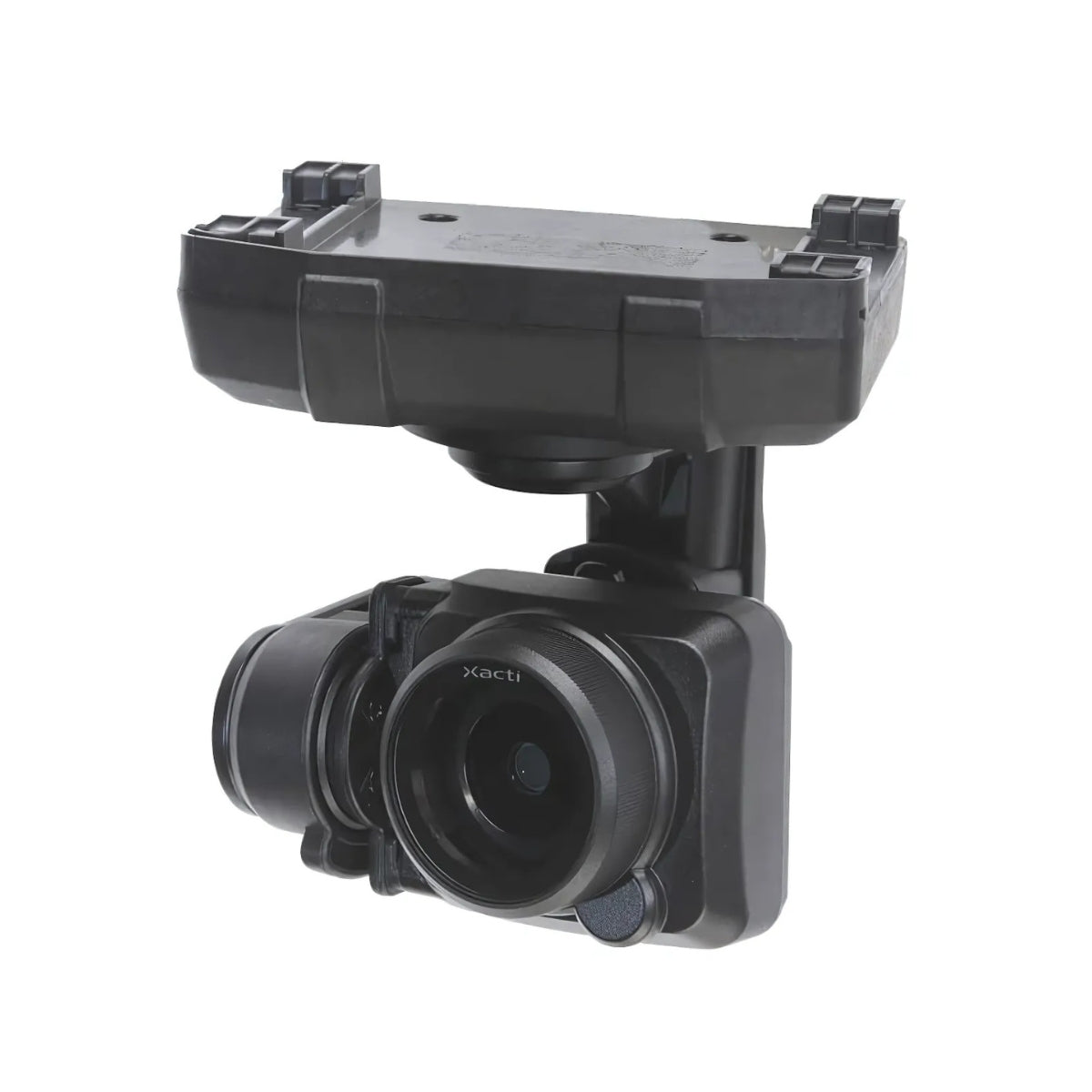

• ACSL SOTEN Standard Camera with 1" sensor, 20MP resolution, and mechanical shutter

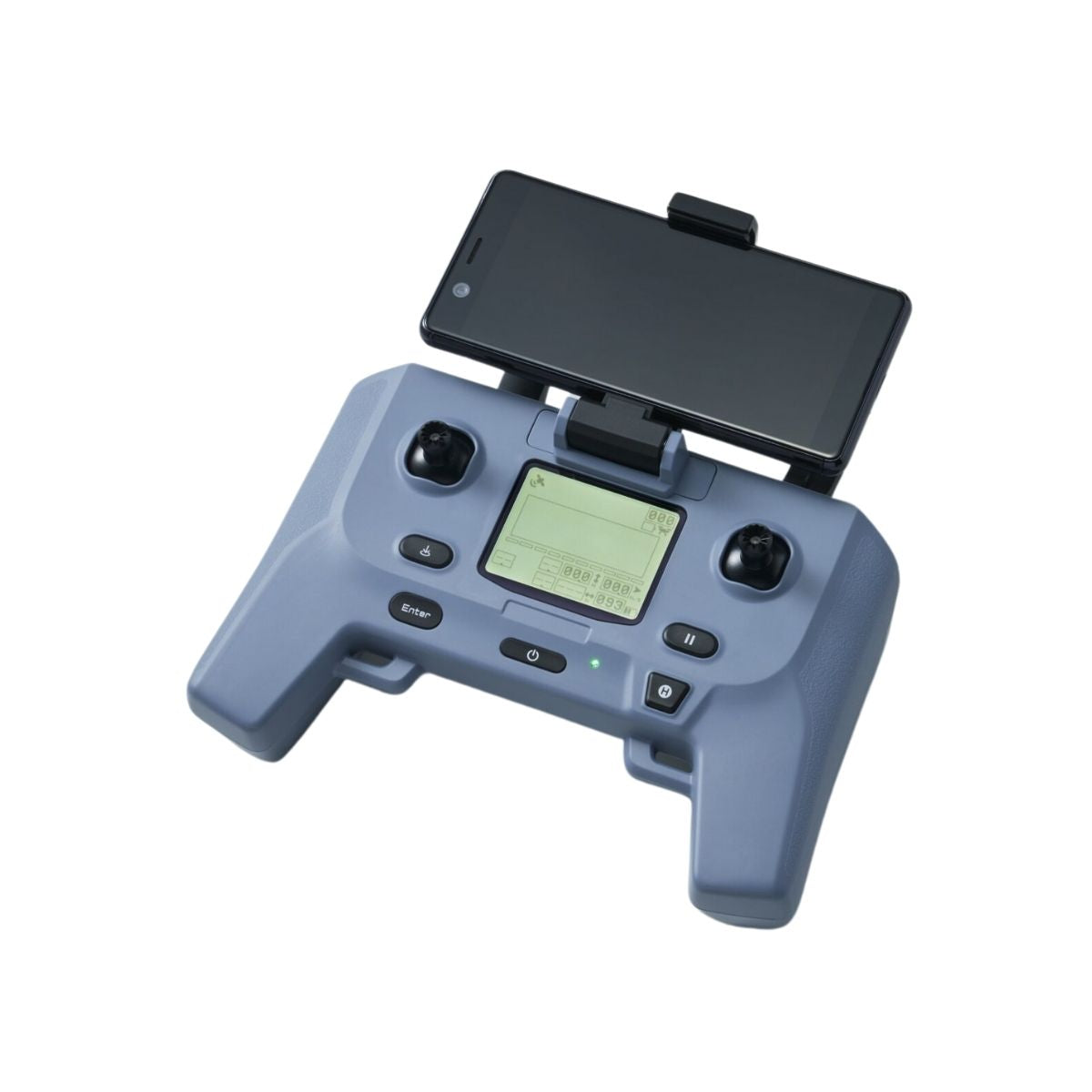

• Standard Controller with AES256 encrypted communications and IP43 rating (smartphone required, not included)
• 5x ACSL SOTEN Smart Batteries - up to 28 minutes per battery

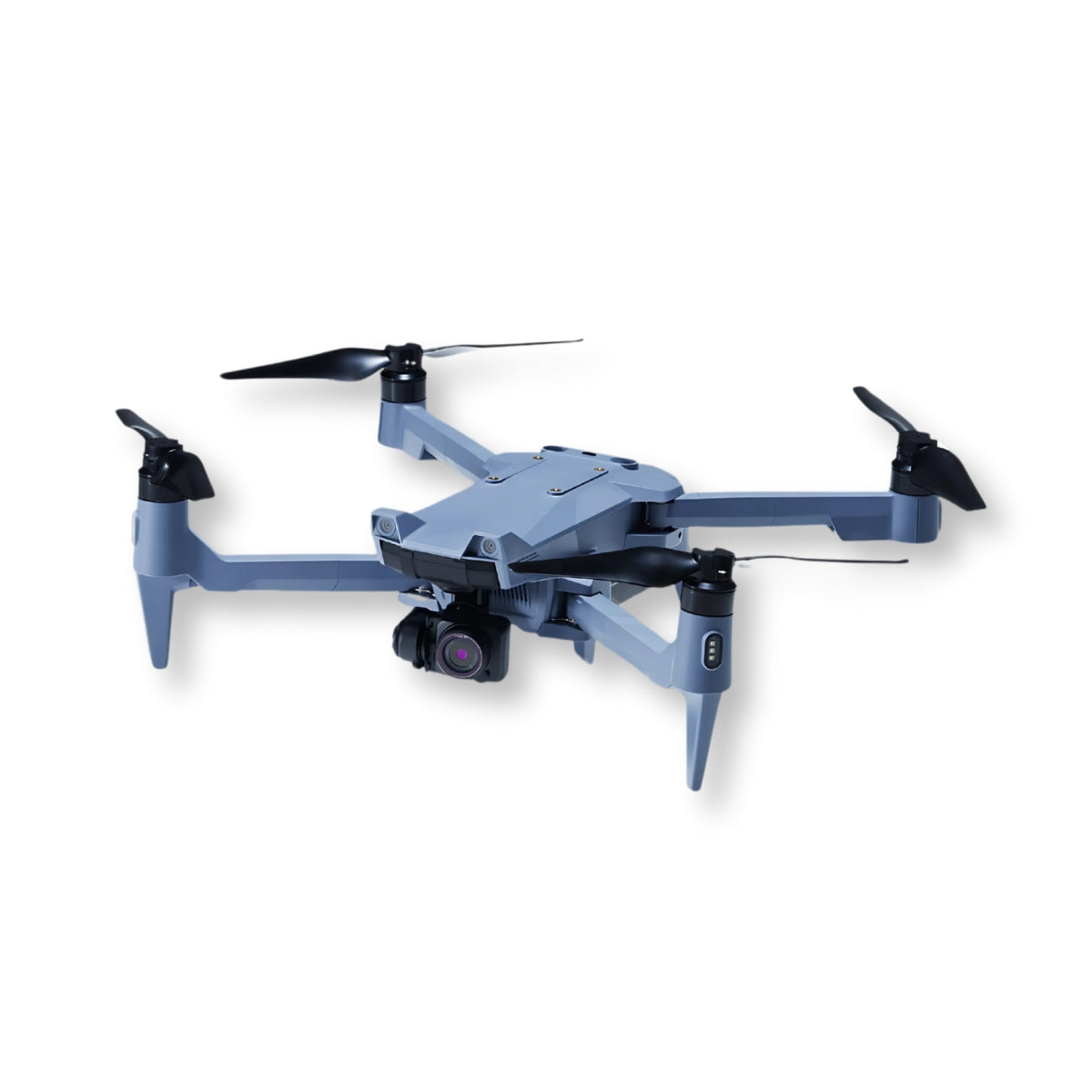

• Foldable 1.7 kg drone designed for rapid deployment
• Swappable payload bay allows future camera upgrades
• FAA Remote ID ready
• ISO15408-certified system with secure data workflows
• Multi-directional obstacle avoidance for safer flight
• LTE-enabled for long-range, BVLOS operations (smartphone LTE required)
• IP43-rated drone and controller for weather and dust resistance

Applications

The Mission Package is built for teams that need consistent uptime and reliable performance across field operations.

• Disaster response and emergency management
• Utility and infrastructure inspections
• Environmental and geographic surveying
• Construction and site documentation
• Law enforcement and public safety operations
• Search and rescue missions

Why Buy from DSLRPros

DSLRPros has outfitted mission teams across public safety, utilities, and infrastructure for over a decade. We understand what it takes to operate in real-world, high-pressure environments-and we make sure you're ready.

From initial configuration to regulatory compliance, we guide you through everything. Whether you need help syncing your controller with your mobile device, managing battery usage, or optimizing image workflows, our team is here. With U.S.-based support and a practical approach to drone integration, you're not just buying a package-you're gaining a partner in performance.

Get the ACSL SOTEN Mission Package from DSLRPros and fly smarter, longer, and safer-every time.

Specifications

• Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
• Height: Unfolded 153mm (including propellers)
• Weight: 1,720g (including standard camera and battery)
• Number of rotor blades: 4
• Intelligent battery: Lithium-ion battery 94Wh, 1 pc
• Operating frequency: 2.412 - 2.477 GHz
• Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
• Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
• Maximum pitch angle: 30°
• Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
• Maximum ascent speed: 3m/s
• Maximum descent speed: 2m/s
• Maximum takeoff weight: 2,000g
• Maximum speed (no wind): 15m/s
• Operational limit altitude: 2000m
• Maximum airspeed: 15m/s
• Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
• Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
• Ingress protection: IP43 (with camera, gimbal, and battery)
• GNSS: GPS + QZSS + GLONASS + SLAS
• Operating temperature: 0°C to 40°C
• Optional items: LTE Comms Module, Spare Battery
• Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
• Obstacle detection angle: 70° horizontal, 40° vertical
• Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
• Operating environment: Adequate lighting and clear texture
• Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
• Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
• Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
• Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
• Remote Controller - Operating frequency: 2.412 to 2.477 GHz
• Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
• Remote Controller - Battery life: Up to 4 hours
• Remote Controller - Operating temperature: 0°C to 40°C
• Remote Controller - Security: AES encryption method
• Remote Controller - Multiple operations: Control can be transferred between two radio controllers
• Supported Mobile Devices - OS: Android™ 4.1 or higher
• Supported Mobile Devices - Terminal: USB Type-C
• Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
• Visible Camera - Effective pixels: 20 megapixels
• Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
• Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
• Visible Camera - Video method: MOV / H.264
• Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
• Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Visible Camera - Sensor size: 1 inch
• Visible Camera - Shutter system: Mechanical
• Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
• Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
• Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Visible Camera - Security: Data encryption can be enabled/disabled
• Camera Gimbal - Mechanism: 3-axis
• Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
• Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
• Camera Gimbal - Control accuracy: ±0.02°
• Camera Gimbal - Switching method: One-touch camera switching
• Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
• Infrared + Visible Camera - Temperature resolution: <60mK
• Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
• Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
• Infrared + Visible Camera - Video method: MOV / H.264
• Infrared + Visible Camera - Video quality: Full HD / HD
• Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

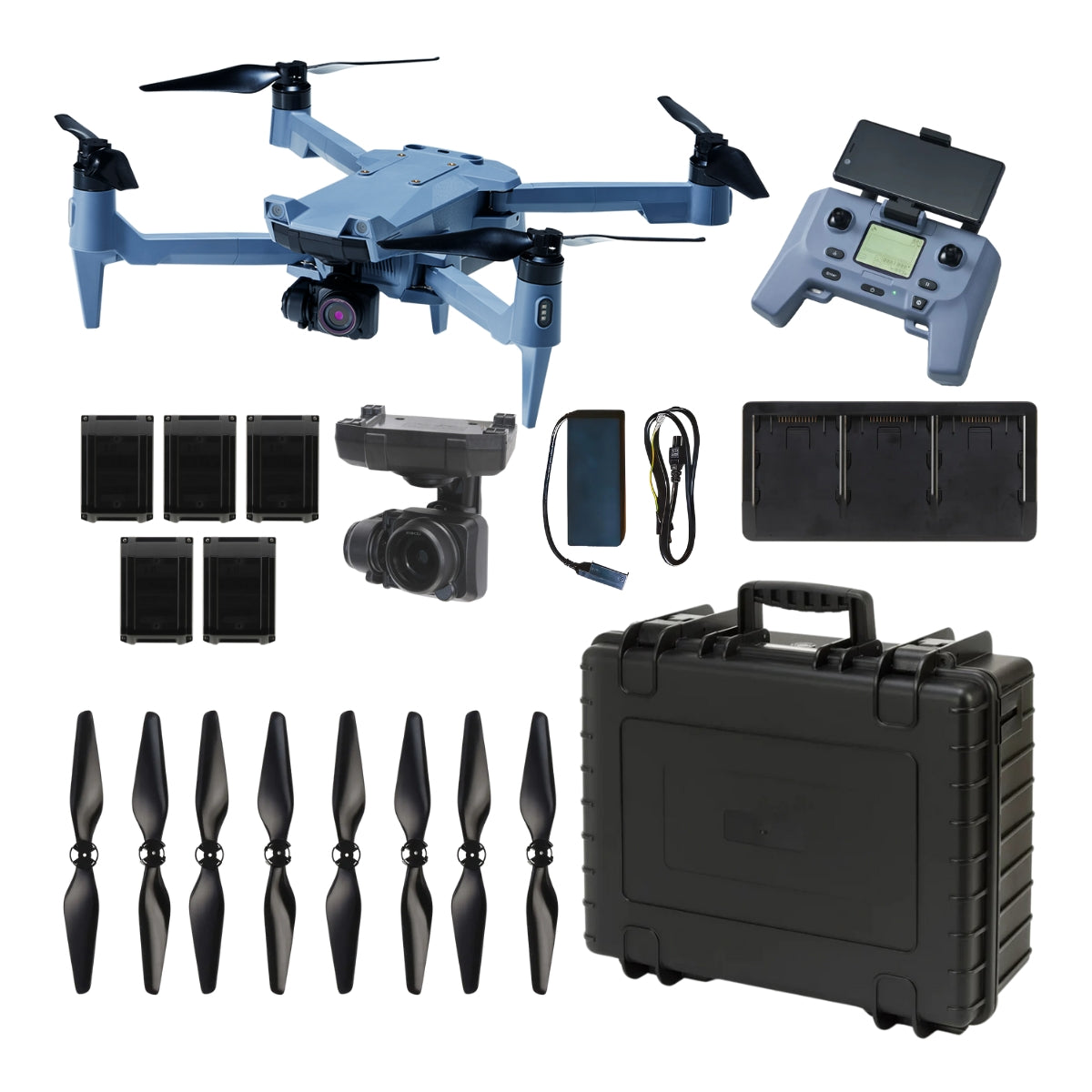

In The Box

• 1x SOTEN Airframe
• 1x Standard Remote Controller (smartphone not included)
• 1x Battery Charger
• 1x Triple Battery Charger
• 5x Smart Batteries
• 2x CW Propeller set
• 2x CCW Propeller Set
• 1x Standard 20MP Camera
• 1x Hard Storage Case
