ACSL SOTEN Survey Package with TAITEN Smart Controller

ACSL SOTEN Survey Package with TAITEN Smart Controller: Secure Aerial Surveying Elevated

The ACSL SOTEN Survey Package with TAITEN Smart Controller delivers unmatched precision, security, and efficiency for professional aerial surveying and inspection. Built in Japan to NDAA standards, SOTEN combines a foldable, lightweight design with dual-band 2.4/5.8 GHz connectivity, one-touch swappable payloads, and an encrypted Fides-Link. With TAITEN's 7-inch daylight-bright display and extended runtime, operators gain a resilient command center optimized for secure, data-critical workflows in the field.

Enhanced Survey Control for Demanding Environments

This package equips survey teams with the CX-GB100 20MP visible camera for high-resolution mapping and inspection, while TAITEN's Android 13 platform integrates seamlessly with the ACSL TAKEOFF app. The controller's IP54 chassis withstands harsh field conditions, offering up to 8 hours of operation with dual-band resilience. Whether for construction sites, land surveys, or emergency response, the SOTEN system ensures accurate, efficient missions backed by robust encryption and NDAA compliance.

Designed for Secure, Field-Ready Operations

The SOTEN aircraft's one-touch swappable camera mount allows rapid payload changes between standard, thermal, multispectral, and optical-zoom modules. TAITEN supports HDMI output and advanced I/O for external displays and team workflows, with the ability to pair up to three controllers to a single aircraft. Lightweight at just 1.7 kg, with five included batteries, the package ensures extended endurance and transport-ready deployment in a rugged case.

Key Features and Benefits

• NDAA-compliant system: Made in Japan, AES-256 encrypted Fides-Link communication
• TAITEN Smart Controller: 7″ 1500-nit daylight display with IP54 ruggedization
• Dual-band 2.4 GHz + 5.8 GHz radios for resilient connectivity
• Up to 8 hours runtime with USB-C extendable power support
• CX-GB100 Standard Camera: 20MP, 1″ sensor, mechanical shutter
• One-touch swappable payload system for fast mid-mission changes
• Pair up to three controllers per aircraft for multi-operator workflows
• HDMI, USB-C, Ethernet, microSD, and audio ports for field versatility
• Foldable, 1.7 kg airframe with IP43 rating for transport and deployment
• FAA Remote ID compliant and ISO/IEC 15408 security architecture

Applications and Use Cases

• Land and property surveying: Accurate data capture for mapping and planning
• Construction site tracking: Monitor project progress with high-resolution imaging
• Infrastructure inspection: Assess bridges, towers, and assets with secure data flow
• Environmental monitoring: Capture reliable aerial data for planning and research
• Utility corridor mapping: Support grid and pipeline inspections efficiently
• Public safety operations: Deploy in disaster response with secure communication
• Emergency logistics: Enable fast situational awareness in critical scenarios
• Multi-operator training: Pair controllers for pilot-instructor or payload workflows

The ACSL SOTEN Survey Package with TAITEN Smart Controller ensures professionals can operate with confidence, security, and flexibility. Designed for survey-grade precision and secure data handling, it delivers field-ready performance for complex missions.

As an authorized ACSL dealer, DSLRPros provides expert lifecycle support, from deployment to training, integration, and dedicated after-purchase care. Equip your team with the ACSL SOTEN Survey Package today and secure dependable results in every mission.

Specifications

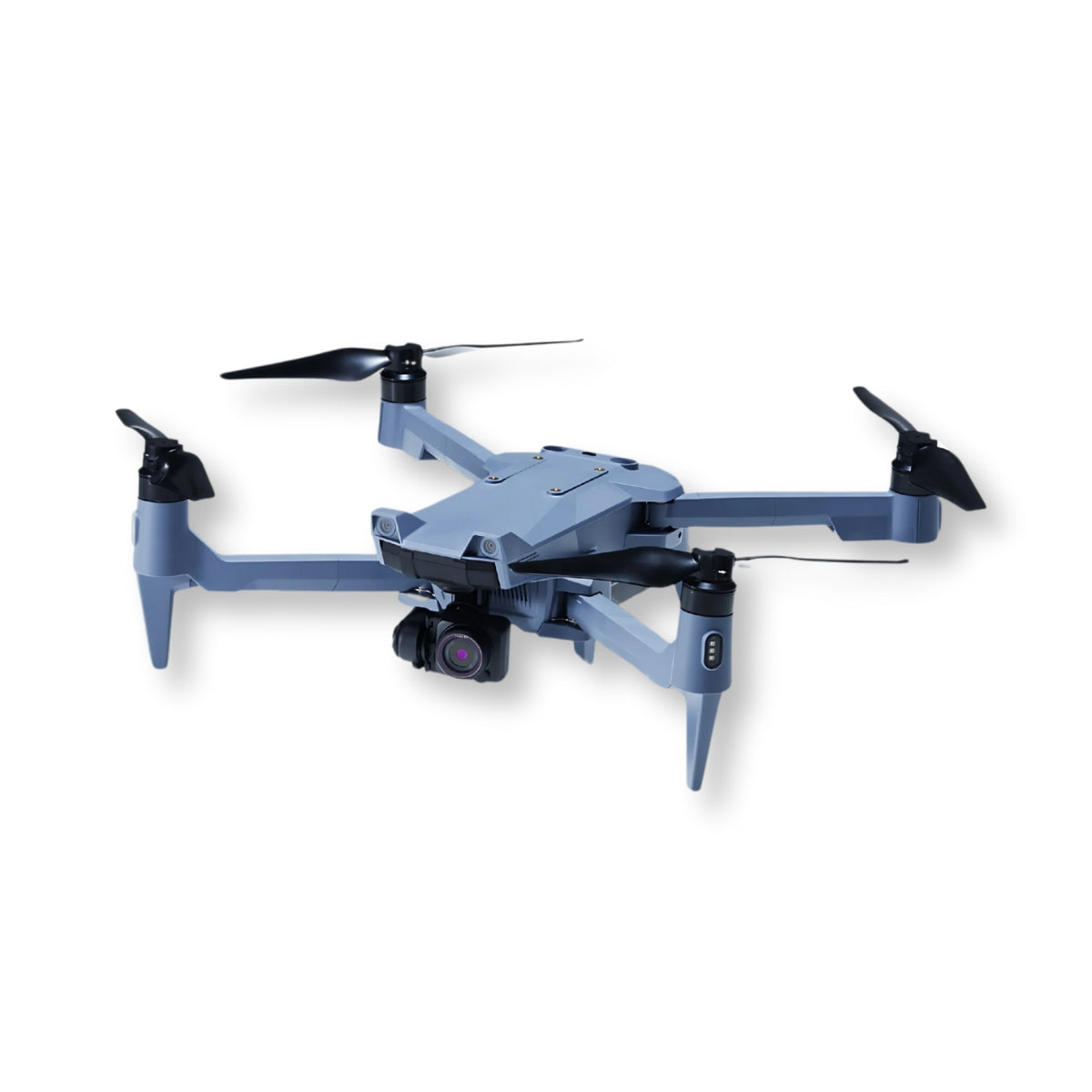

Aircraft

• Dimensions:
  • Unfolded: 637 × 560 mm (including propellers)
  • Folded: 162 × 363 mm
• Height (Unfolded): 153 mm (including propellers)
• Weight: 1,720 g (with standard camera and battery)
• Number of Rotor Blades: 4
• Intelligent Battery: Lithium-ion, 94 Wh
• Operating Frequency: Dual-band 2.4 GHz + 5.8 GHz
• Hovering Accuracy:
  • Vision Positioning – Vertical: ±0.1 m, Horizontal: ±0.3 m
  • GNSS – Vertical: ±0.5 m, Horizontal: ±1.5 m
• Maximum Pitch Angle: 30°
• Maximum Angular Velocity:
  • Pitch: 80°/s
  • Yaw: 45°/s
• Maximum Ascent Speed: 3 m/s
• Maximum Descent Speed: 2 m/s
• Maximum Takeoff Weight: 2,000 g
• Maximum Speed (No Wind): 15 m/s
• Operational Limit Altitude: 2,000 m
• Max Flight Time:
  • With Standard Camera (8 m/s wind): 25 min
  • Without Standard Camera (8 m/s wind): 29 min
• Optional Cameras: Infrared + Visible (EO/IR), Multispectral, Optical Zoom
• Ingress Protection: IP43 (with camera, gimbal, and battery)
• GNSS: GPS + QZSS + GLONASS + SLAS
• Operating Temperature: 0°C to 40°C
• Optional Items: LTE Comms Module, Spare Battery

Vision System

• Obstacle Detection Range:
  • Forward: 10 m
  • Upward: 5 m
  • Downward: 5 m
• Detection Angle: 70° horizontal, 40° vertical
• Detection Frequency: 10 Hz (all directions)
• Operating Environment: Adequate lighting and clear texture

Infrared Sensor

• Obstacle Detection Range:
  • Upward: 2 m
  • Downward: 12 m
• Detection Angle:
  • Upward: 27°
  • Downward: 2°
• Detection Frequency: 50 Hz (up and down)
• Operating Environment: Large, diffuse, or reflective obstacles

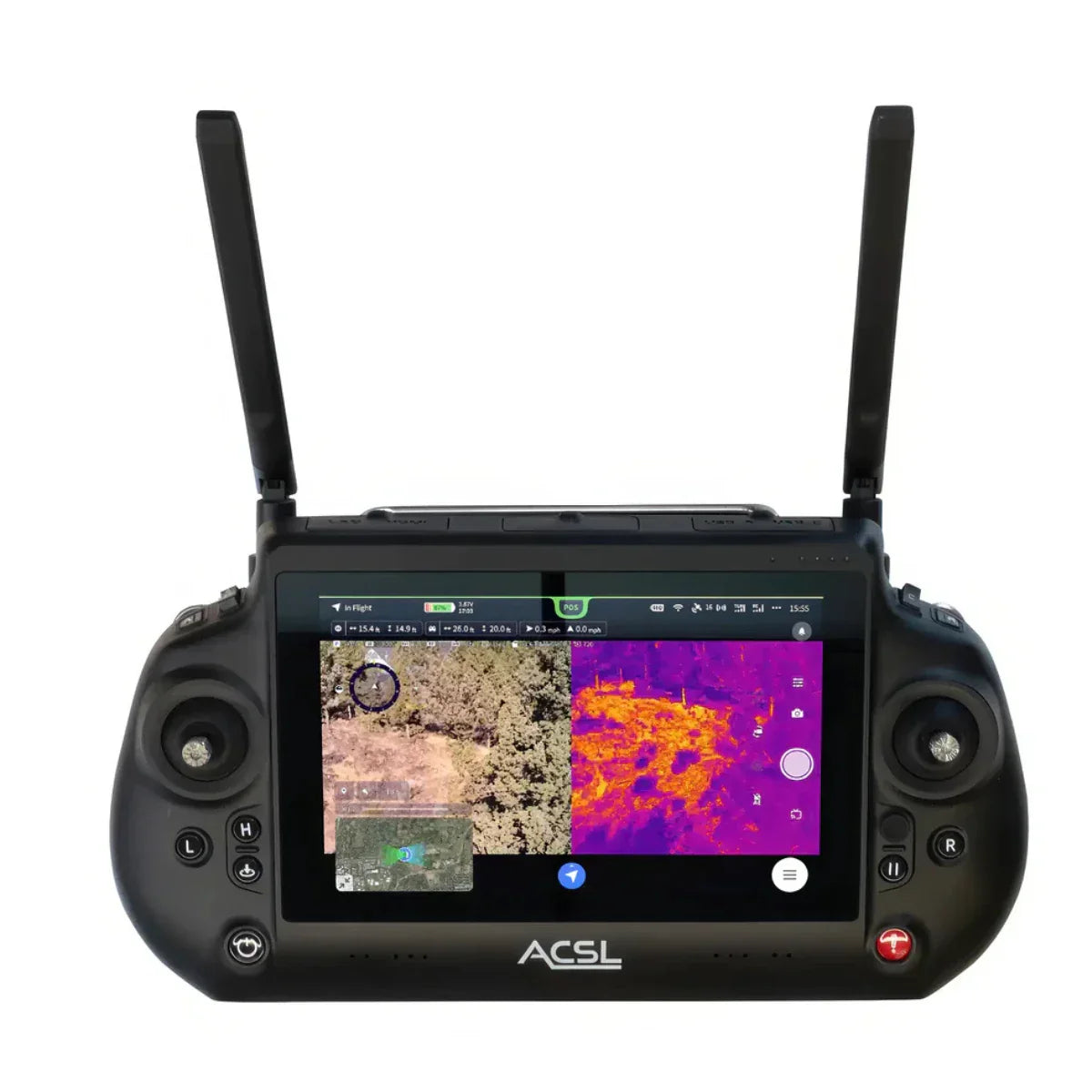

TAITEN Smart Controller

• Display: 7 in, 1200 × 1920 resolution, 1500 nits brightness
• Operating Bands: Dual-band 2.4 GHz + 5.8 GHz (ACSL Fides-Link)
• Range: 6+ miles (unobstructed, low interference)
• Wireless: Wi-Fi
• Encryption: AES-256
• Pairing: Up to 3 controllers per aircraft
• Runtime & Power: Up to 8 hours; USB-C power/charging
• Environmental:
  • IP Rating: IP54
  • Operating Temp: 20–60°C (68–140°F)
  • Storage Temp: 20–50°C (68–122°F)
  • Charging Temp: 0–45°C (32–113°F)
• Controls:
  • 2-axis sticks
  • 2× gimbal wheels
  • 3-state mode switch (AUT/POS/MAN)
  • Go-Home, Land, Emergency, Power
• Customizable Inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
• Indicators & Sensors:
  • Connection LED
  • Battery LED
  • Vibration motor
  • GNSS module
  • Light sensor (auto-brightness)
  • Microphone
• I/O: HDMI, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm audio, Tripod mount
• System: Android 13, ACSL TAKEOFF app, Remote ID compliant, NDAA compliant
• Physical: Approx. 10.6 × 6.5 × 2.7 in, ≈3.2 lb

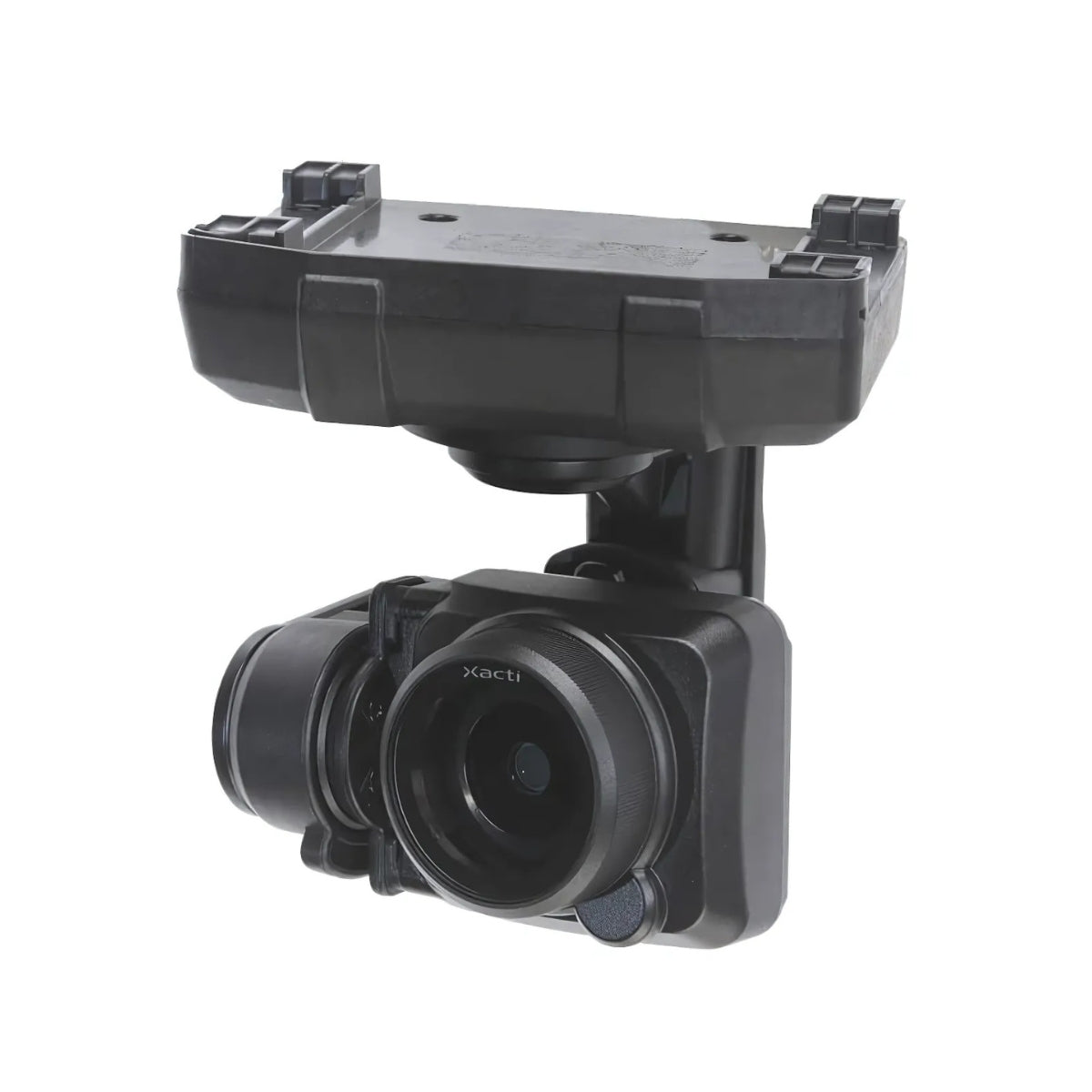

Visible Camera (Standard)

• Effective Pixels: 20 MP
• Still Image Formats: JPEG / DNG / JPEG+DNG
• Still Image Quality: Superfine / Fine / Normal
• Resolutions: 20 MP / 15 MP / 10 MP
• Movie Formats: MOV / H.264
• Movie Quality:
  • 4K: 30 fps
  • 2.7K: 60 / 30 fps
  • Full HD: 120 / 60 / 30 fps
  • HD: 60 / 30 fps
  • nHD: 240 / 120 / 60 / 30 fps
• Video Recording Time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (4 GB split on FAT32)
• Sensor Size: 1 inch
• Shutter System: Mechanical
• Focus Mode: Single AF / Continuous AF / MF; Multi AF / Spot AF
• Exposure Compensation: −2 EV to +2 EV (1/3 EV steps)
• Recording Media: microSD (UHS ≥ U3 or V30; Video class ≥ V30)
• Security: On-media encryption available; toggle enable/disable

Camera Gimbal

• Mechanism: 3-axis
• Operable Range:
  • Pan: ±85°
  • Tilt: −115° to 45°
• Max Speed:
  • Pan: 60°/s
  • Tilt & Roll: 100°/s
• Control Accuracy: ±0.02°
• Switching Method: One-touch camera switching

Optional Infrared + Visible Camera

• Visible Camera Pixels: 12 MP
• Infrared Camera Pixels: 81,920
• Temperature Resolution: < 60 mK
• Dynamic Range: up to +140°C (high gain)
• Still Image Quality: Superfine / Fine / Normal
• Video Format: MOV / H.264
• Video Quality: Full HD / HD
• Video Recording Time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min
• Recording Media: microSD (UHS ≥ U3 or V30; Video class ≥ V30)
• Security: Encrypted recording supported; toggle enable/disable

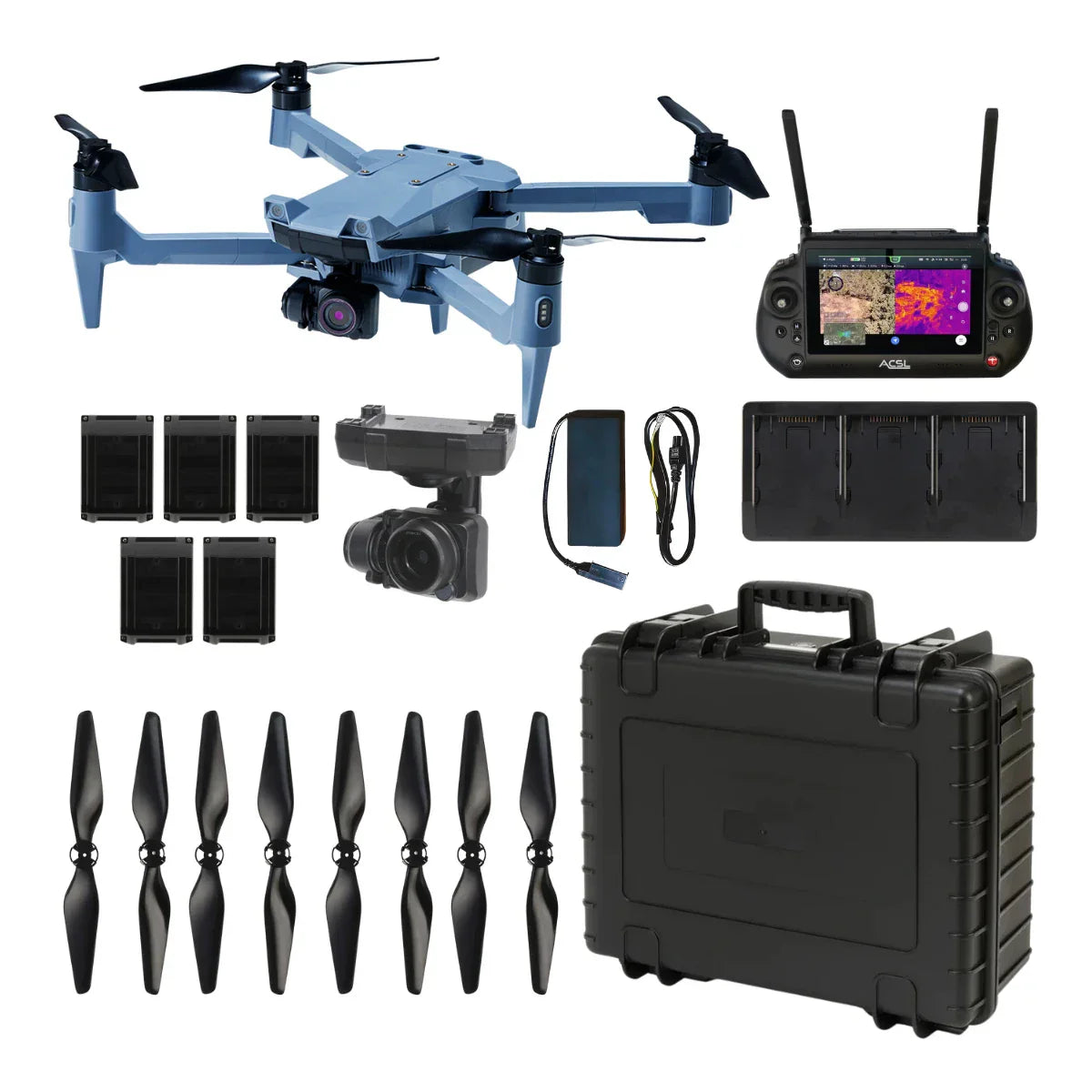

In The Box

• 1x SOTEN aircraft
• 1x TAITEN smart controller
• 1x Battery charger
• 1x Multi-charger
• 2x Propeller set
• 5x Smart battery
• 1x Standard 20MP camera (CX-GB100)
• 1x Hard case
