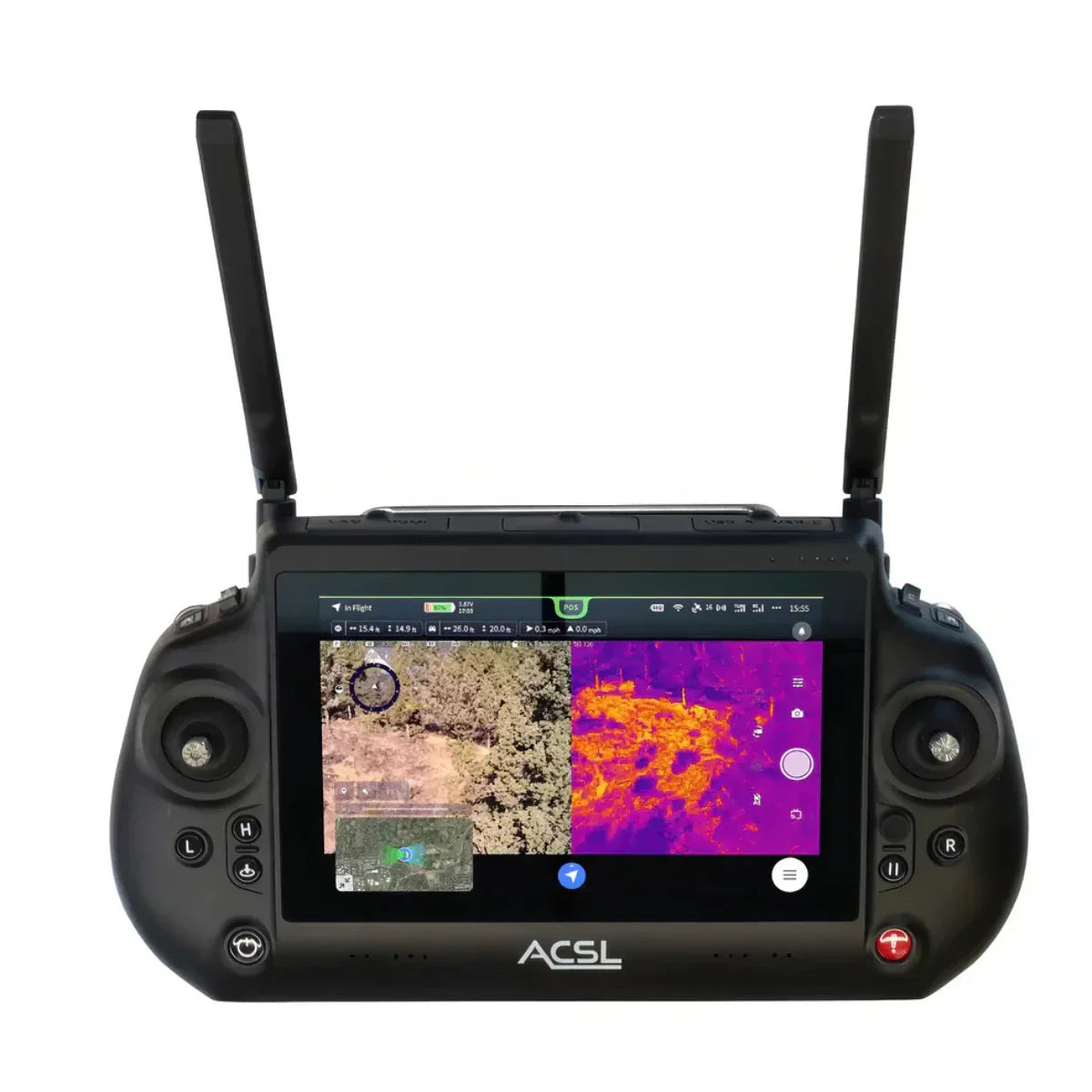

ACSL TAITEN Smart Controller: Rugged, Secure Command Center for SOTEN
The ACSL TAITEN Smart Controller is a next-generation, NDAA-compliant ground station purpose-built for ACSL SOTEN operations. With a daylight-readable 7″ display rated at 1500 nits, IP54 ruggedness, and dual-band encrypted connectivity, TAITEN ensures clear visuals, secure links, and reliable performance in demanding field environments. Running the ACSL TAKEOFF app on Android 13, TAITEN combines low-latency feedback with a fast processor to keep survey and inspection teams in full control.
Visual Clarity and Responsive Control
TAITEN's integrated 7″ display provides 1200 × 1920 resolution at 1500 nits, remaining fully visible in direct sunlight. The upgraded compute platform shortens feedback loops for gimbal, flight, and payload inputs, ensuring responsive operation during time-critical missions. Customizable switches, wheels, and buttons allow operators to tailor controls for precise handling.
Built for Secure, Field-Ready Operations
Engineered for extended missions, TAITEN delivers up to 8 hours of runtime, with power extendable via USB-C. Its IP54 chassis resists dust and splashes while maintaining ergonomic balance for handheld use. Dual-band 2.4/5.8 GHz links with AES-256 encryption secure communications up to 6+ miles where permitted. Multi-operator support allows pairing up to three controllers per aircraft for training, payload management, or pilot handoffs.
Key Features and Benefits
- NDAA-compliant smart controller purpose-built for ACSL SOTEN
- 7″ daylight display: 1500 nits brightness, 1200 × 1920 resolution
- IP54 ruggedness: resists dust, splashes, and field conditions
- Dual-band 2.4/5.8 GHz radios with AES-256 encryption
- Up to 8 hours runtime, extendable via USB-C power
- Customizable controls: 3-state switch, 8 buttons, 2 wheels, 5-way hat
- HDMI out, USB-C, USB-A, Ethernet, microSD, 3.5 mm audio ports
- Built-in GNSS, light sensor, mic, vibration motor, and LED indicators
- Pair up to 3 controllers per aircraft for multi-operator workflows
- Runs Android 13 with ACSL TAKEOFF app integration
Applications and Use Cases
- Aerial surveying: Maintain visibility and control in bright field conditions
- Infrastructure inspection: Secure links for reliable camera and gimbal input
- Public safety: Rugged control center for rapid-response operations
- Utilities: Manage payloads and missions in diverse environments
- Training workflows: Pair instructor and payload operators with one aircraft
- Disaster response: Operate securely with resilient dual-band connectivity
The ACSL TAITEN Smart Controller offers survey and inspection professionals a rugged, NDAA-compliant command center with secure, responsive control. With extended runtime, customizable inputs, and a bright, field-ready display, TAITEN is the controller built for mission-critical deployments.
As an authorized ACSL dealer, DSLRPros provides expert lifecycle support from deployment to training, integration, and dedicated after-purchase care. Equip your team with TAITEN today and elevate your SOTEN operations.
Specifications
-
Display
- Size: 7 in
- Resolution: 1200 × 1920
- Brightness: 1500 nits
-
Radio & Links
- Operating Bands: 2.4 GHz + 5.8 GHz
- Range: 6+ miles (unobstructed, low-interference)
- Wireless: Wi-Fi
- Encryption: AES-256
- Radio: ACSL Fides-Link
- Pairing: Up to 3 controllers to 1 aircraft
-
Power & Runtime
- Operating Time: Up to 8 hours (extendable via USB-C power)
- Charging/Power: USB-C
-
Environmental
- IP Rating: IP54
- Operating Temperature: 68–140 °F (20–60 °C)
- Storage Temperature: 68–122 °F (20–50 °C)
- Charging Temperature: 32–113 °F (0–45 °C)
-
Controls & UX
- Primary Controls: 2-axis sticks; 2× camera gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home; Land; Emergency; Power
- Customizable Inputs: 3-state switch; 8 buttons; 2 wheels; 5-way hat
- Indicators: Connection LED; Battery LED; Vibration motor
- Sensors: GNSS module; Light sensor (auto-brightness); Microphone
-
Interfaces
- Ports: USB-C; USB-A 2.0; HDMI; microSD; Ethernet; 3.5 mm audio; Tripod mount
- Video Out: HDMI
-
System
- Operating System: Android 13
- App: ACSL TAKEOFF (integrated)
- Remote ID: Compliant
- NDAA: Yes
-
Physical
- Dimensions: 10.6 × 6.5 × 2.7 in
- Weight: ≈3.2 lb
In The Box
- 1x ACSL TAITEN Smart Controller
