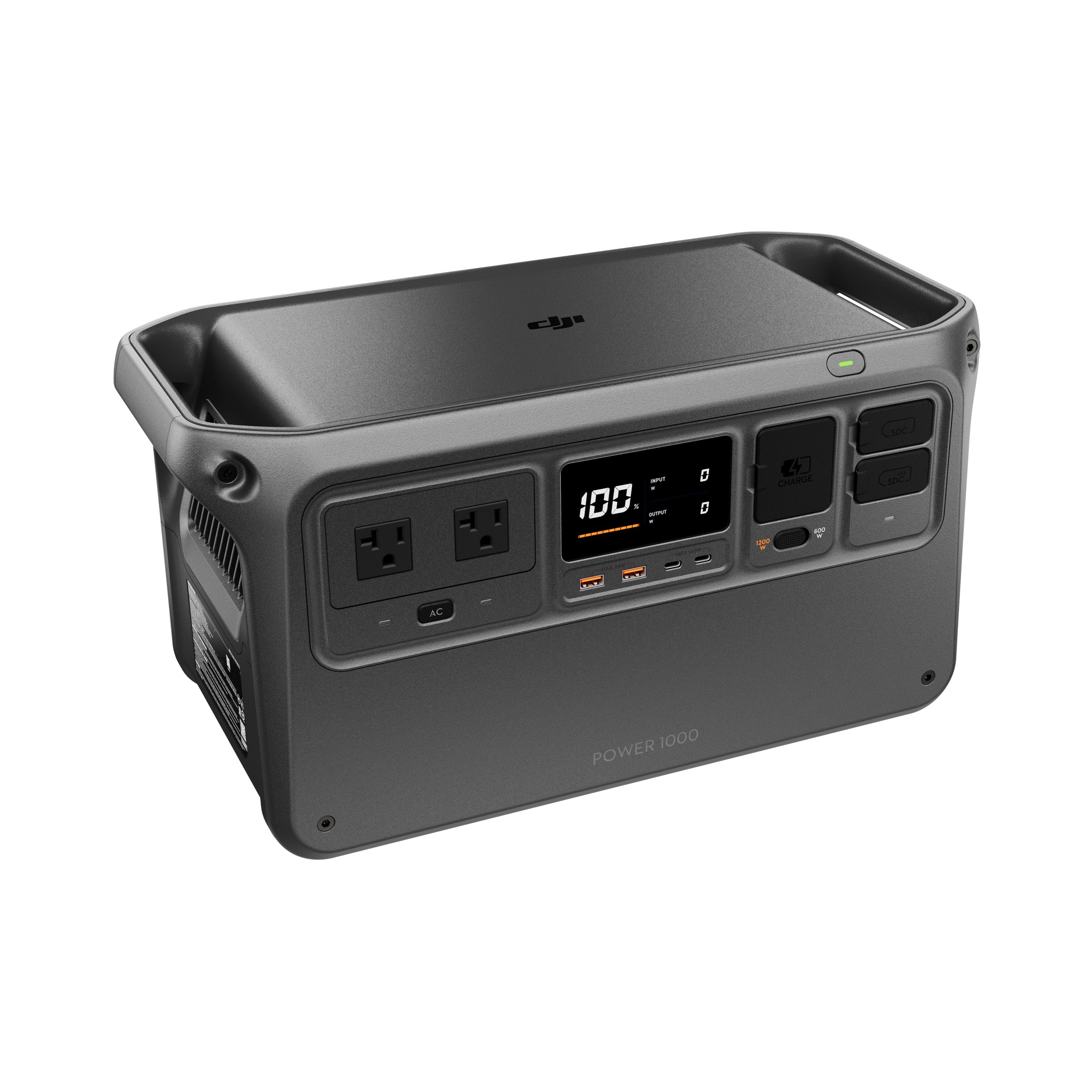

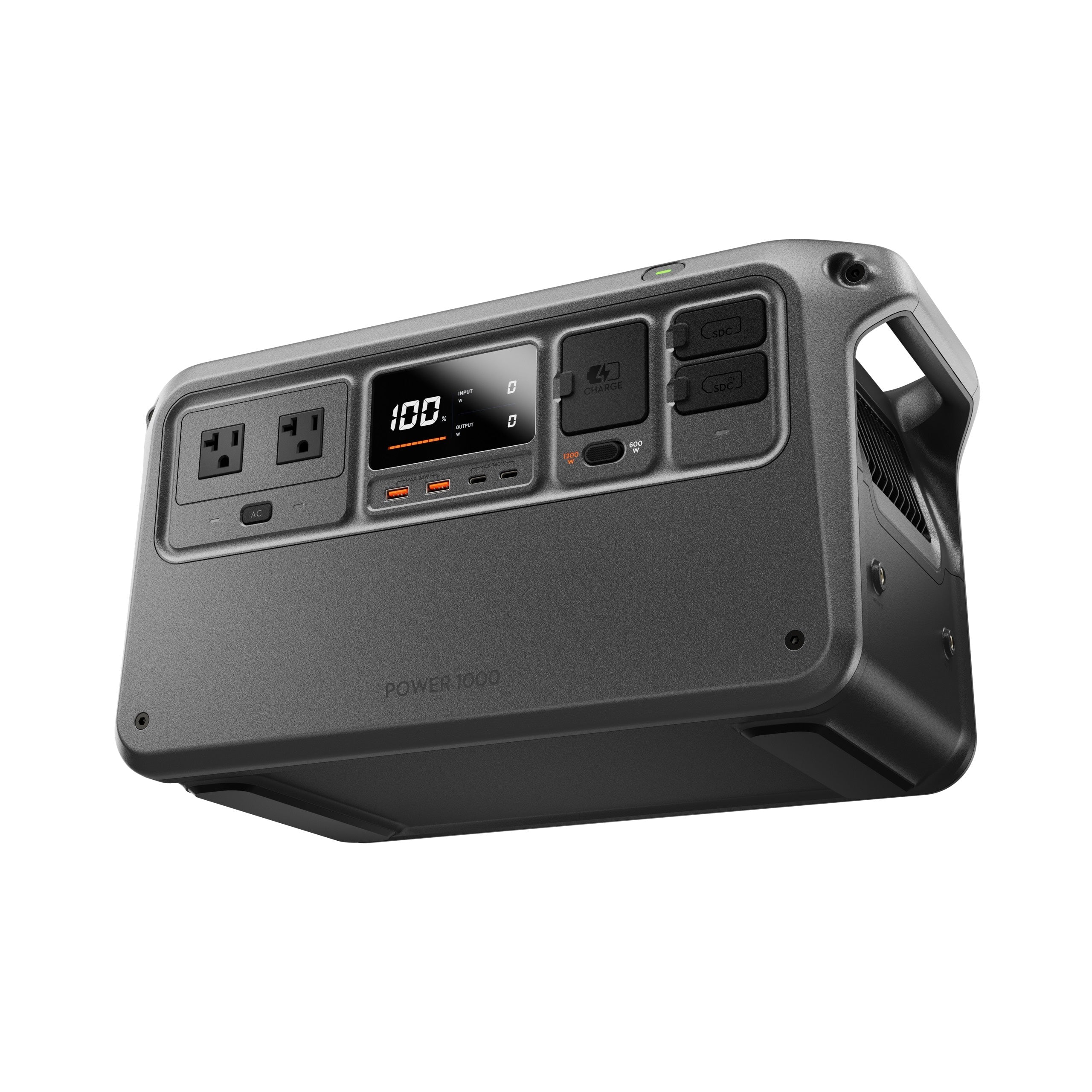

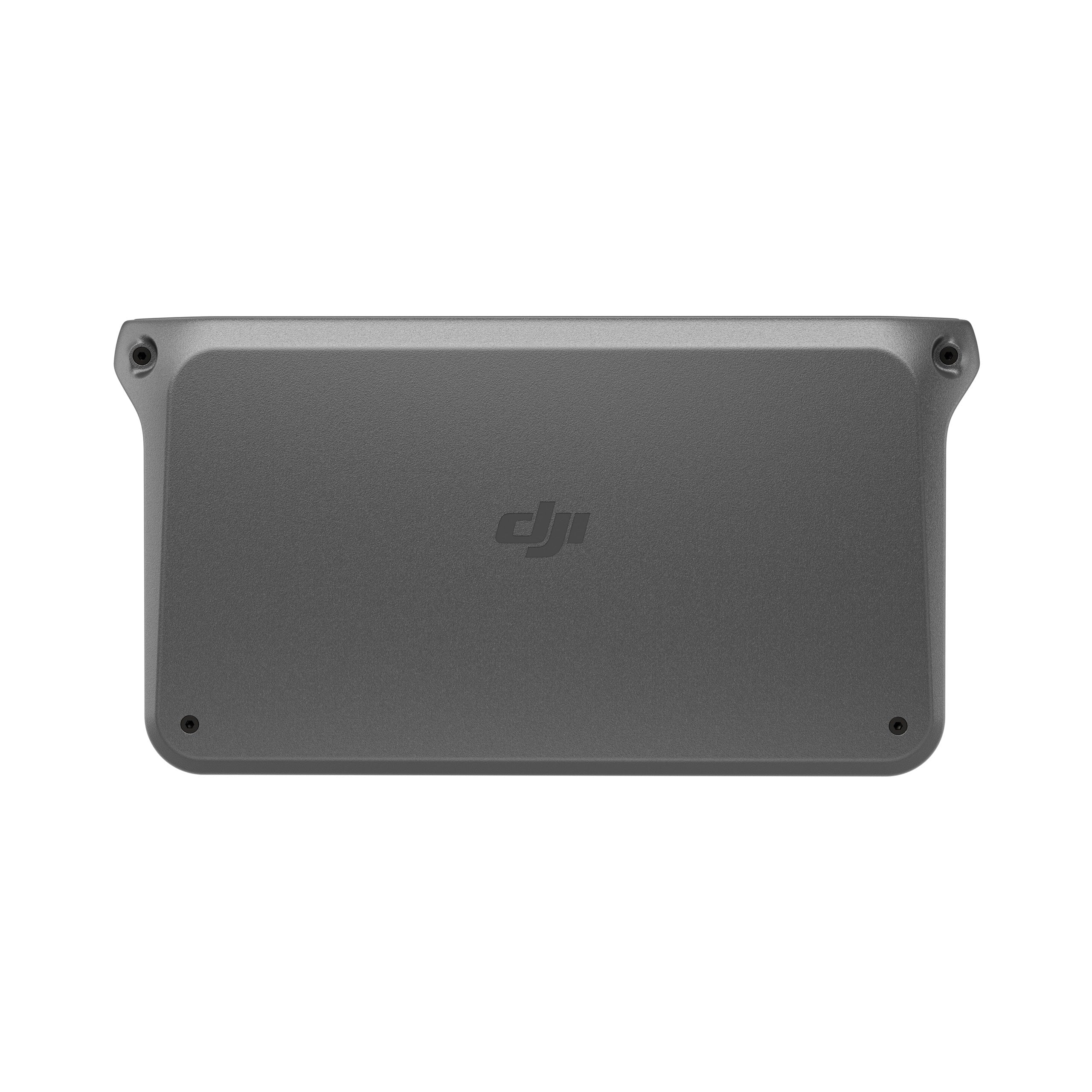

DJI Power 1000 SDC

General

• Model

• DYM1000L/DYM1000H

• Capacity

• 1024 Wh

• Net Weight

• Approx. 13 kg

• Dimensions

• 448×225×230 mm (L×W×H)

• Number of Ports

• AC Output × 2
  USB-C × 2
  USB-A × 2
  SDC × 1
  SDC Lite × 1
  AC Input × 1

• Max Operating Altitude

• 3000 m

Output Specifications

• AC Output

• DYM1000L: AC 100-120 V, 50/60 Hz, max continuous output: 2200 W,* max output: 2600 W (total),** peak output: 4400 W
  DYM1000H: AC 220-240 V, 50/60 Hz, max continuous output: 2200 W,* max output: 2600 W (total),** peak output: 4400 W

  <sup>AC output data varies by country and region.
  Given that the voltage in Japan is 100 V, the max continuous output power of the Japanese version is 2000 W.
  * At a room temperature of 25° C (77° F), Power 1000 can stably provide a max continuous output of 2200 W until the battery runs out. Data measured in a DJI laboratory.
  ** At an output power of 2600 W, the DYM1000L prototype can sustain for 30 seconds, and the DYM1000H prototype can sustain for 60 seconds. Durations were measured when DJI Power 1000 is at approx. 25° C (77° F) and 50% battery level. Duration may vary due to differences in battery temperature and battery level. Refer to the actual usage. It is recommended to use max power output when the battery is at a moderate temperature and a relatively higher battery level. Data measured in a DJI laboratory.</sup>

• AC Output (Bypass Mode)

• DYM1000L: AC 100-120 V, 12 A, 1440 W
  DYM1000H: AC 220-240 V, 10 A, 2200 W

• USB-A Output

• 5 V, 3 A
  9 V, 2 A
  12 V, 2 A
  Max output power per channel: 24 W

• USB–C Output

• 5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 5 A
  20 V, 5 A
  28 V, 5 A (EPR)
  Max output power per channel: 140 W*

  ^{* Each USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.}

• SDC and SDC Lite Output

• SDC: 9-27 V, max current: 10 A, max output power: 240 W
  SDC Lite: 9-27 V, max current: 10 A, max output power: 240 W

  ^{Both of the SDC and SDC Lite ports support extensive accessories.}

Input Specifications

• AC Input

• DYM1000L: AC 100-120 V, 1200 W (recharging), 1440 W (Bypass mode)
  DYM1000H: AC 220-240 V, 1200 W (recharging), 2200 W (Bypass mode)

• SDC and SDC Lite Input

• SDC: DC 32-58.4 V, max 400 W, 8 A
  SDC Lite: DC 32-58.4 V, max 400 W, 8 A

  ^{Both of the SDC and SDC Lite ports support extensive accessories.}

Battery

• Cell Chemistry: LFP (lithium ferrophosphate)

• Cycle Life: Maintains over 70% capacity after 4000 cycles.

  ^{Measured at 25℃/77°F room temperature, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.}

Operating Temperature

• Power Supply Temperature: -10° to 45° C (14° to 113° F)

• Recharging Temperature: 0° to 45° C (32° to 113° F)

• Storage Temperature: -10° to 45° C (14° to 113° F)
