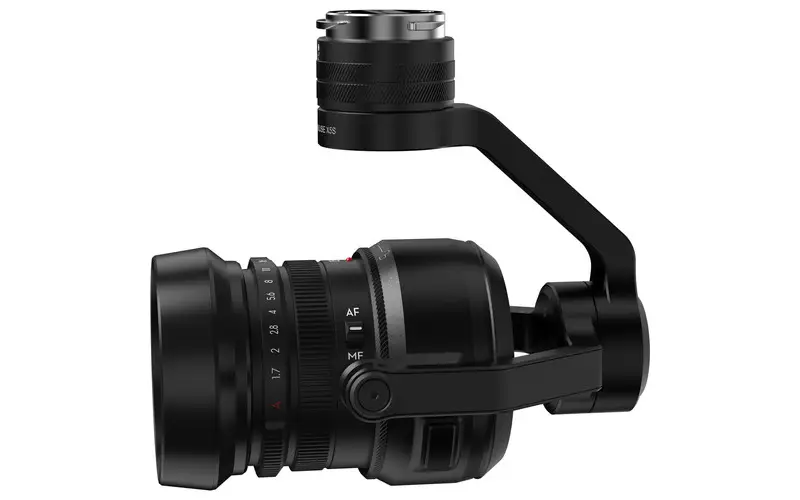

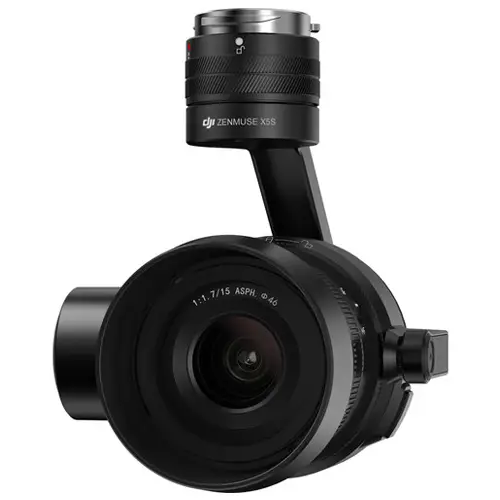

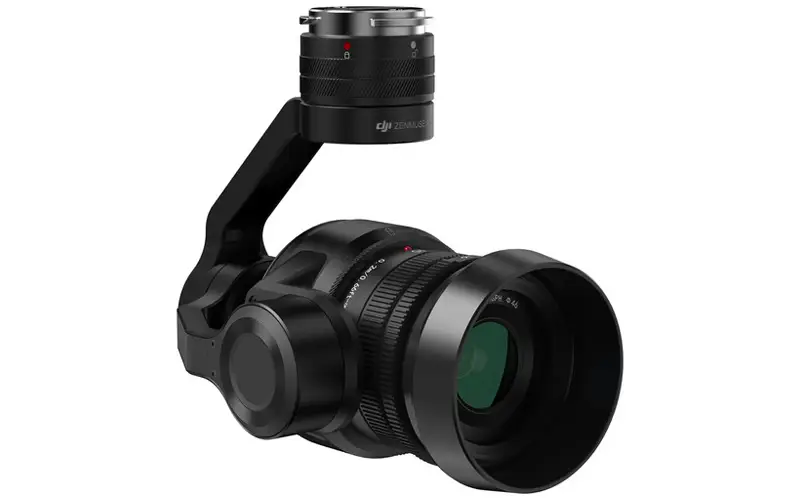

DJI Zenmuse X5S – Unmatched Precision for Aerial Filmmaking
In aerial cinematography, every detail matters. The Zenmuse X5S is built to handle the challenges of professional filmmaking, delivering high-resolution images, versatile lens compatibility, and advanced video recording options.
Designed for creators who demand flexibility and precision, it enhances both the technical and artistic aspects of aerial photography.
Enhanced Sensor for Exceptional Detail
With a refined Micro 4/3 sensor, the Zenmuse X5S boasts 12.8 stops of dynamic range, producing crisp, high-quality images.
The upgraded signal-to-noise ratio and superior color sensitivity ensure true-to-life visuals with impressive depth and contrast.
Expansive Lens Options for Creativity
Designed for flexibility, the X5S supports up to eight M4/3 lenses, including zoom options with focal lengths from 9mm to 45mm (18mm to 90mm in 35mm format).
This allows cinematographers to achieve a wide variety of shots, from expansive aerial views to detailed close-ups.
Pro-Grade Video Capabilities
The Zenmuse X5S, powered by the Inspire 2’s CineCore 2.0, captures 5.2K 30fps CinemaDNG and Apple ProRes video, along with smooth 4K 60fps (H.264) and 4K 30fps (H.265) at 100Mbps.
It also supports 20fps continuous DNG burst shooting at 20.8MP, making it an elite choice for professional filmmakers and photographers.
With its combination of high-resolution imaging, adaptable lens options, and robust video capabilities, the Zenmuse X5S is a powerful tool for filmmakers seeking precision and quality in every shot. Whether for cinematic storytelling or commercial projects, it offers the performance needed to bring creative visions to life.
Specifications
| Gimbal |
| Angular Vibration Range |
±0.01° |
| Controllable Range |
Tilt: 40 to -130°
Pan: 320°
Roll: 20° |
| Mechanical Range |
Tilt: 50 to -140°
Pan: 330°
Roll: 90 to -50° |
| Controllable Speed |
Tilt: 180°/s
Pan: 270°/s
Roll: 180°/s |
| Camera |
| Sensor |
4/3" CMOS |
| Effective Pixels |
20.8 MP |
| Photo Resolutions |
5280 x 2970 (16:9)
5280 x 3956 (4:3) |
| Video Resolutions |
17:9 Aspect Ratio:
CinemaDNG: 4096 x 2160 at 23.976/24/25/29.97 (up to 2.4Gb/s)
4096 x 2160 at 50/59.94 (up to 4 Gb/s)
H.264: 4096 x 2160 at 23.976/24/25/29.97/47.95/50/59.94 (100 Mb/s)
H.265: 4096 x 2160 at 23.976/24/25/29.97 (100 Mb/s)
16:9 Aspect Ratio:
CinemaDNG: 3840 x 2160 at 23.976/24/25/29.97 (up to 2.4 Gb/s)
3840 x 2160 at 50/59.94 (up to 4 Gb/s)
ProRes: 3840 x 2160 at 23.976/24/25/29.97 422 HQ at 900 Mb/s, 4444 XQ at 2 Gb/s
H.264: 3840 x 2160 at 23.976/24/25/29.97/47.95/50/59.94 (100 Mb/s)
2720 x 1530 at 23.976/24/25/29.97p (80 Mb/s)
2720 x 1530 at 47.95/50/59.94p (100 Mb/s)
1920 x 1080 at 23.976/24/25/29.97p (60 Mb/s)
1920 x 1080 at 47.95/50/59.94p (80 Mb/s)
1920 x 1080 at 119.88p (100 Mb/s)
H.265: 3840 x 2160 at 23.976/24/25/29.97 (100 Mb/s)
2720 x 1530 at 23.976/24/25/29.97p (65 Mb/s)
2720 x 1530 at 47.95/50/59.94p (80 Mb/s)
1920 x 1080 at 23.976/24/25/29.97p (50 Mb/s)
1920 x 1080 at 47.95/50/59.94p (65 Mb/s)
1920 x 1080 at 119.88p (100 Mb/s)
2.44:1 Aspect Ratio:
CinemaDNG: 5280 x 2972 at 23.976/24/25/29.97 (up to 4.2 Gb/s)
ProRes: 5280 x 2160 at 23.976/24/25/29.97 422 HQ at 1.3 Gb/s |
| Photo Formats |
DNG, JPEG, DNG+JPEG |
| Video Formats |
RAW, ProRes, MOV, MP4 |
| General |
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Dimensions |
5.5 x 3.9 x 5.2" / 14 x 9.8 x 13.2 cm |
| Weight |
1 lb / 461 g (with Lens) |
In the Box
- 1x DJI Zenmuse X5S with MFT 15mm/1.7 ASPH Lens
